Looking for dealer level coverage on Mercury engines? We got you covered with our portable tablet diagnostic scan tool that will connect to Outboard and Inboard engines that use the 12 Volt systems. This tool will give you the power of the OEM dealer by allowing you to do what dealers can do such as perform diagnostic tests, read & clear fault codes, view live data, and much more.

Functionality

• Read Codes
• Clear Codes

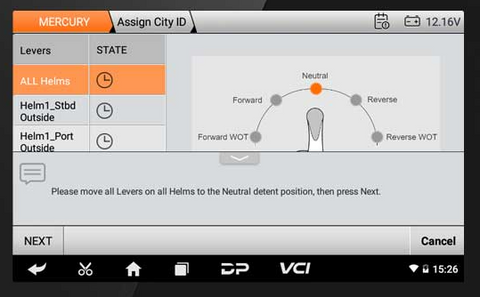

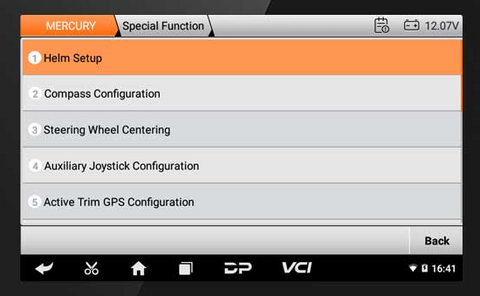

• Functional Commands: Coil Test, Fuel Injector Test, Engine Hour History, IAC Valve Actuation, RPM History, Throttle Calibrations, Set Tilt limit, Set Engine Location, and more (Depends on model & year of the engine).
• View ECU Information
• Create engine health reports and engine runtime reports

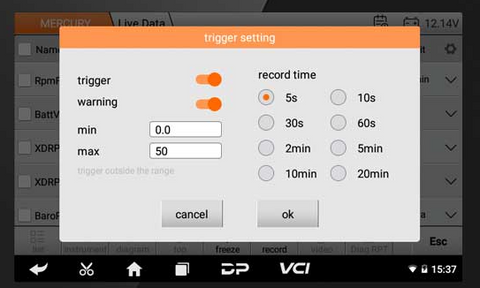

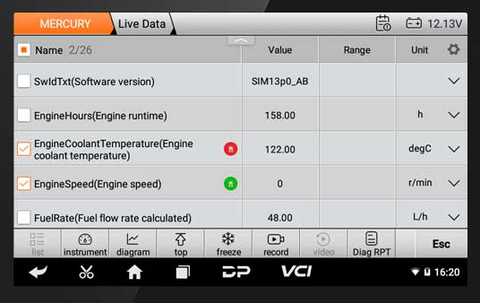

• View Live Data - Includes all sensors and values such as oil pressure, throttle position, intake pressure, and many more. Includes the ability to view data in multiple formats (Table View, Graph View, Instrument View, etc...)

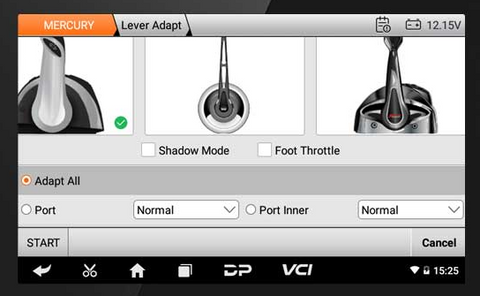

• Support modules include but are not limited to Engines (Gasoline), Joystick, Lever and Helm Control Module, Lever Configuration, Service System, Thrust Vector Control Module and other modules
• This kit will connect with only the 10-Pin diagnostic Terminator/Junction connector.
• This will not work with 24 Volt Systems
• Return for refund within 30 days, the buyer pays return shipping and restocking fee.

Technical Specifications

• Size: 5.0"
• Resolution: 800 x 480
• Operating System: Android 5.1.1
• CPU: RK3128 Quad Core ARM Cortex A7
• Battery: 2600ma
• Operating Temperature: 14 to 131 degrees Fahrenheit
• Other: Touch screen, WIFI

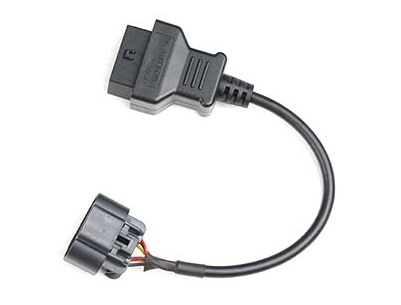

• Includes: 10-pin diagnostic cable and charger for tablet.

Demo Video:

Other

• Includes 2 years of Updates & Support
• Supports models in G3, including DFI 2, Optimax, Seapro, Verado, 40HP-300HP Engines and other models up to 2024

Attention:
Unable to add other brands of marine softwares.
Supports only English, can't change to other languages.
2023 Mercury 300 is not supported yet.

Registration and Set-up

View the video below on how to properly Register and Set-up:
