Marine Diagnostic Mini Scan Tool for Yamaha Engines & Yamaha PWCs
Looking for dealer level coverage on Yamaha marine engines? We got you covered with our portable tablet diagnostic scan tool. This tool will give you the power of the OEM dealer by allowing you to read & clear fault codes, view live data, perform diagnostic tests, and much more.
Functionality
- Read Codes
- Clear Codes
- Functional Commands: Individual injector test, Oil Control Valve Drive test, Operate Electric Fuel Fuel Feed Pump, Ignite Ignition Coil, Drop Individual Cylinder, Record & View Engine Oil Change, and more (Depends on model & year of Yamaha engine).
- View ECU Information
- Create engine health reports and engine runtime reports

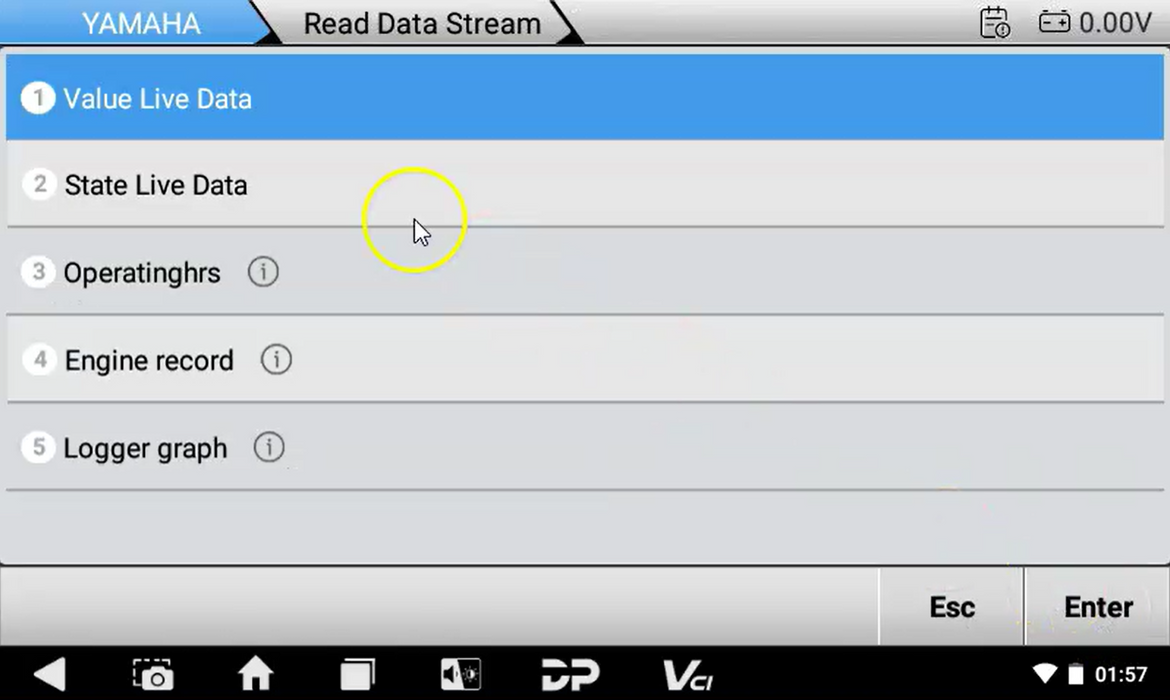

- View Live Data - Includes all sensors and values such as oil pressure, throttle position, intake pressure, and many more. Includes the ability to view data in multiple formats (Table View, Graph View, Instrument View, etc...)
Technical Specifications
- Size: 5.0"
- Resolution: 800 x 480
- Operating System: Android 5.1.1
- CPU: RK3128 Quad Core ARM Cortex A7
- Battery: 2600ma
- Operating Temperature: 14 to 131 degrees Fahrenheit
- Other: Touch screen, WiFi

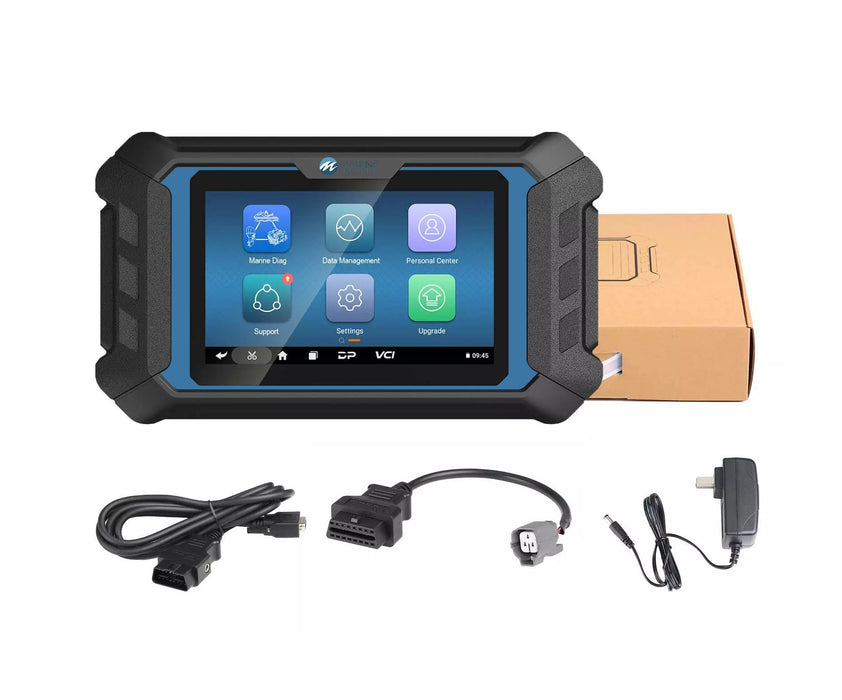

- Includes diagnostic cable (6') and charger for tablet
Other:
- Includes 2 years of Updates & Support
- Supports up to 2022 Outboard models
- Supports 2003 -2022 Jet Ski models
-
Supports diagnostic and key programming
Registration and Set-up
