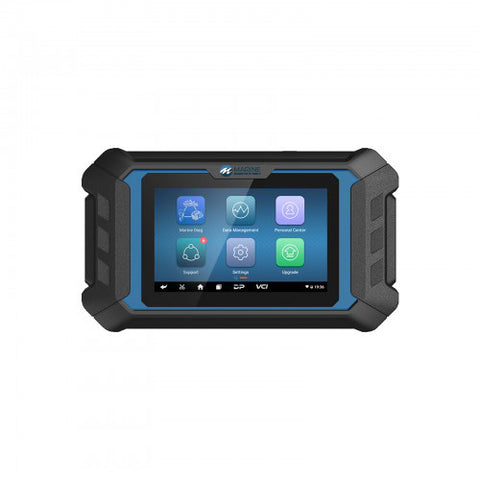

Marine Diagnostic Mini Scan Tool for Suzuki Engines

$449.99
SKU MINI-SUZUKI

Looking for dealer level coverage on Suzuki marine engines? We got you covered with our portable tablet diagnostic scan tool. This tool will give you the power of the OEM dealer by allowing you to do what dealers can do such as perform diagnostic tests, read & clear fault codes, view live data, and much more.

Functionality

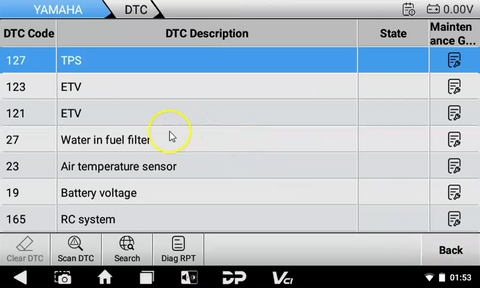

  • Read Codes
  • Clear Codes
  • Functional Commands: Fuel Injector Stop, Fixed Ignition Timing, 02 Feedback, High Fuel Pump Actuation, Low Fuel Pump Actuation, IAC Valve Actuation, VSV Actuation, OCV Actuation, Purge Valve Actuation, VVT System Actuation and more (Depends on model & year of the engine).
  • View ECU Information

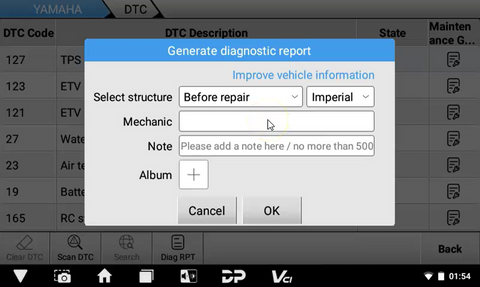

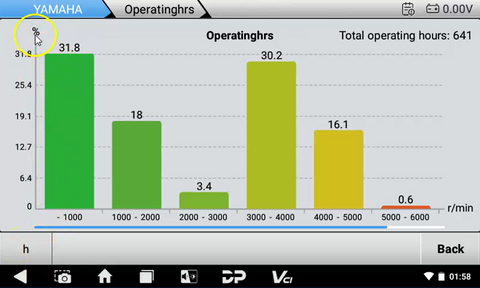

  • Create engine health reports and engine runtime reports

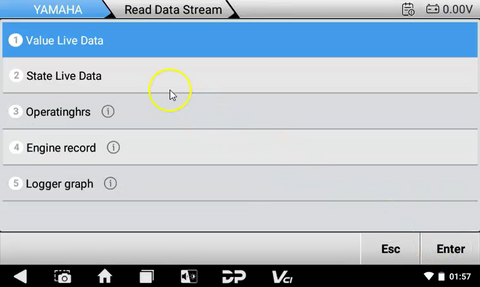

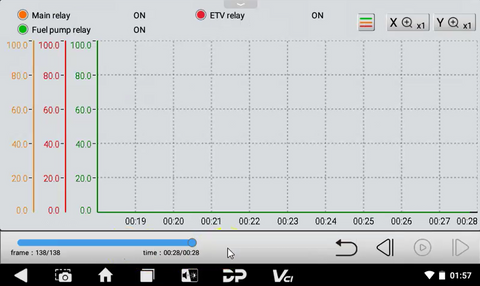

  • View Live Data - Includes all sensors and values such as oil pressure, throttle position, intake pressure, and many more. Includes the ability to view data in multiple formats (Table View, Graph View, Instrument View, etc...)

Technical Specifications

  • Size: 5.0"
  • Resolution: 800 x 480
  • Operating System: Android 5.1.1
  • CPU: RK3128 Quad Core ARM Cortex A7
  • Battery: 2600ma
  • Operating Temperature: 14 to 131 degrees Fahrenheit
  • Other: Touch screen, WiFi

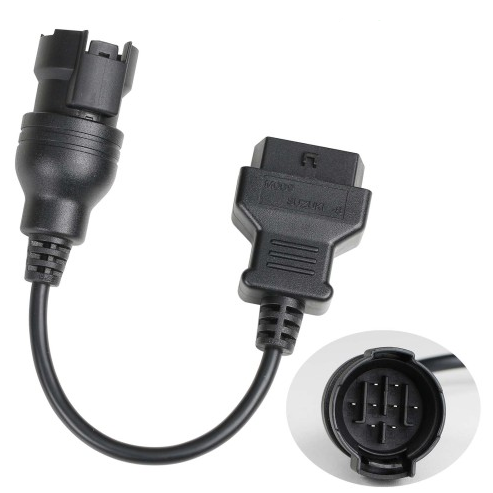

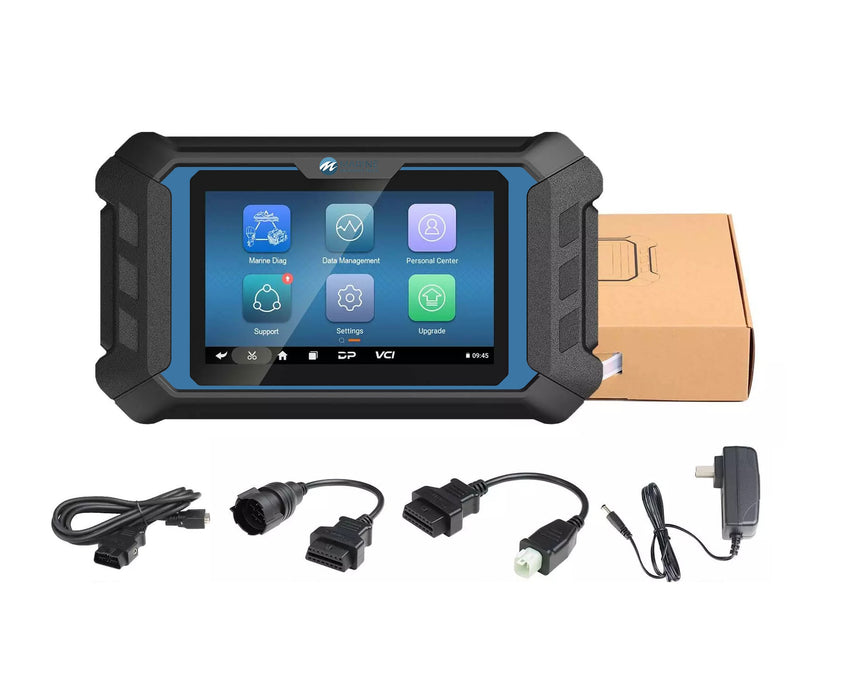

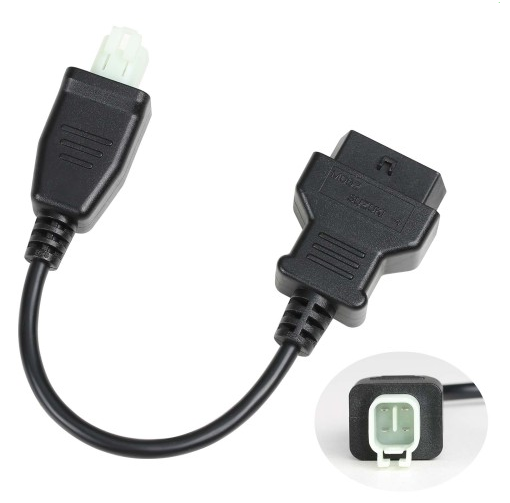

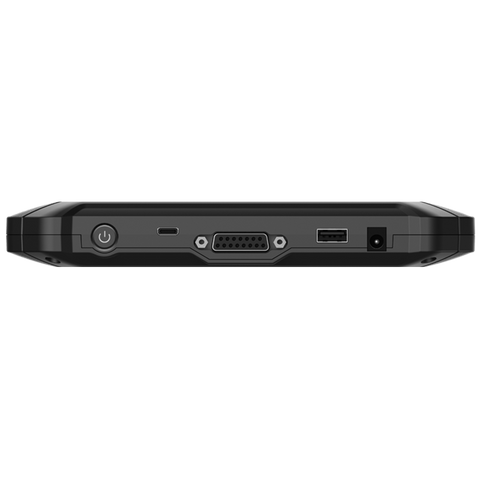

  • Includes 4-pin diagnostic cable, 8-pin diagnostic cable and charger for tablet

Other

  • Includes 2 years of Updates & Support
  • Current functionality is 1998 to 2022 model year

Registration and Set-up
