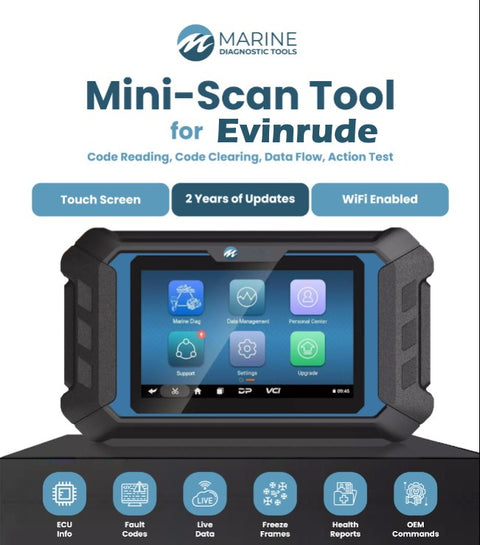

Single-brand diagnostic tool built specifically for Evinrude engines. Plug in, read codes, view live data, and clear faults — handheld, no tablet needed. Built for marine techs, fleet ops, and serious owners who work on Evinrude exclusively.

What's included:

• Evinrude Mini Scan Tool (handheld)
• Brand-specific diagnostic cables
• Year 1 software updates
• Year 1 hardware warranty

Why upgrade to the 3-Year Warranty:

One $300 add-on covers an extra 2 years on the hardware, and covers 3 years total of software updates

Functionality

• Read Codes
• Clear Codes
• Functional Commands: Engine oil type setting, Run-in process, Winterization procedure, Trim Adjustment, TPS Calibration, Throttle lever type. G2 Break in Oil Cycle, In-Gear Idle speed, RAVE actuator, Shift Throttle, Engine Option Configuration, iDock Joystick Configuration, iDock Pressure Sensor Monitor Configuration, and Special functions specific to this manufacturer
• View ECU Information
• Create engine health reports and engine runtime reports
• View Live Data - Includes all sensors and values set in the ECM such as; oil pressure, throttle position, intake pressure, and many more. Includes the ability to view data in multiple formats (Table View, Graph View, Instrument View, etc...)

Demo Video:

Technical Specifications

• Size: 5.0"
• Resolution: 800 x 480
• Operating System: Android 5.1.1
• CPU: RK3128 Quad Core ARM Cortex A7
• Battery: 2600ma
• Operating Temperature: 14 to 131 degrees Fahrenheit
• Other: Touch screen, WIFI
• Includes 4-pin diagnostic cable, 8-pin diagnostic cable and charger for tablet

Other

• Includes 2 years of Updates & Support
• Support 40 EFI 4 Stroke 1999-2006, 50 EFI 4 Stroke 1999-2006, 70 EFI 4 Stroke 1999-2006 and G2 series 2006 and up.

Registration and Set-up

Watch the video on how to properly Register and Set-up the tool
