Single-brand diagnostic tool built specifically for Suzuki engines. Plug in, read codes, view live data, and clear faults — handheld, no tablet needed. Built for marine techs, fleet ops, and serious owners who work on Suzuki exclusively.

What's included:

• Suzuki Mini Scan Tool (handheld)
• Brand-specific diagnostic cables
• Year 1 software updates
• Year 1 hardware warranty

Why upgrade to the 3-Year Warranty:

One $300 add-on covers an extra 2 years on the hardware, and covers 3 years total of software updates

Functionality

• Read Codes
• Clear Codes
• Functional Commands: Fuel Injector Stop, Fixed Ignition Timing, 02 Feedback, High Fuel Pump Actuation, Throttle Calibration, Low Fuel Pump Actuation, IAC Valve Actuation, VSV Actuation, OCV Actuation, Purge Valve Actuation, VVT System Actuation and more (Depends on model & year of the engine).
• View ECU Information
• Create engine health reports and engine runtime reports

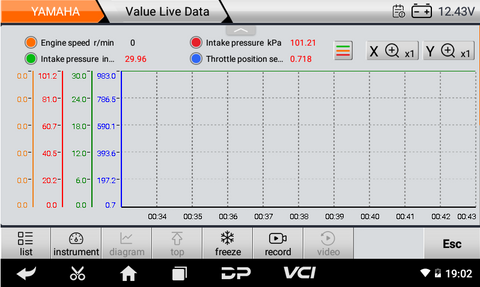

• View Live Data - Includes all sensors and values such as oil pressure, throttle position, intake pressure, and many more. Includes the ability to view data in multiple formats (Table View, Graph View, Instrument View, etc...)

Technical Specifications

• Size: 5.0"
• Resolution: 800 x 480
• Operating System: Android 5.1.1
• CPU: RK3128 Quad Core ARM Cortex A7
• Battery: 2600ma
• Operating Temperature: 14 to 131 degrees Fahrenheit
• Other: Touch screen, WiFi
• Includes 4-pin diagnostic cable, 8-pin diagnostic cable and charger for tablet

Demo:

Other

• Includes 2 years of Updates & Support
• Current functionality is 1998 to 2022 model year

Registration and Set-up

View the video below on how to properly Register and Set-up the MINI
