Jaltest Marine Dealer Level Diagnostic Tool Inboard & Outboard
by Cojali
$5,495.00
SKU JALTEST-MARINE-IBOB
The Jaltest Marine Diagnostic Kit for Inboard engines is the premiere diagnostic tool in the marine industry for inboard and outboard engines.
Features:
- Read and clear codes

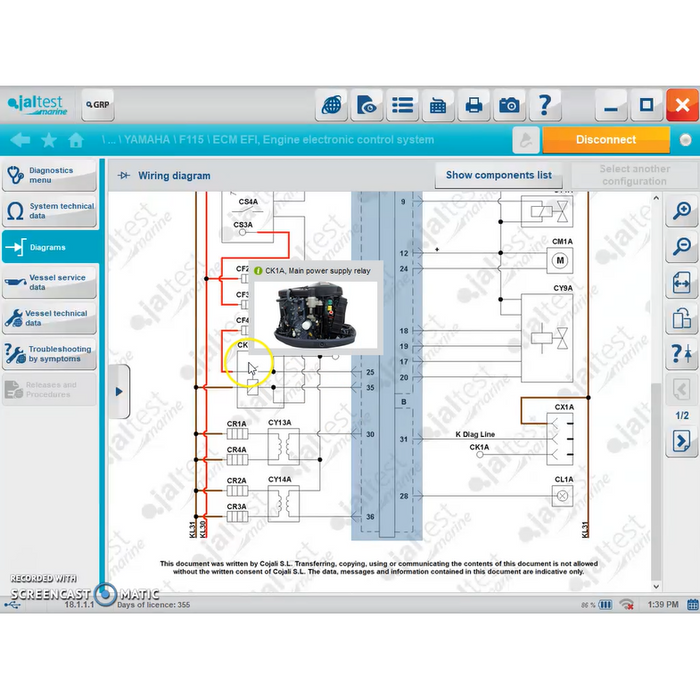

- View technical service information, wiring diagrams, step-by-step troubleshooting guides, and service & maintenance data
- Perform calibrations in the engine, water brake systems, trim modules, and more
- Change engine parameters
- Perform actuation of components (Injectors, fuel pumps, valves, etc...)
- Includes most everything you need to diagnose and troubleshoot outboard engines
This all-inclusive package provides you everything you need -- Laptop, Jaltest Marine Inboard & Outboard Software, Hardware (adapter & cables), and technical support staff. This tool will allow you to run the same commands as the OEM dealer such as injector tests, fuel pump tests, and thousands more.
Kit Contents:

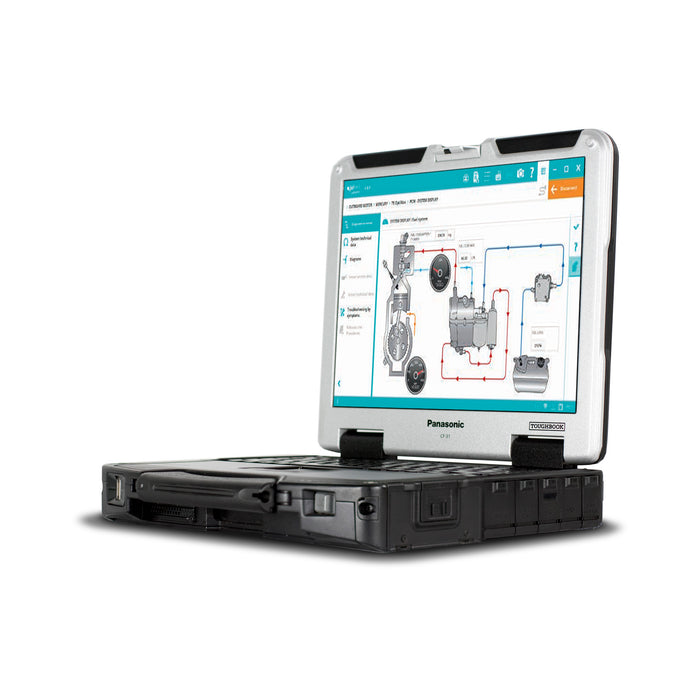

- Panasonic CF31 Toughbook Laptop (see specifications below)
- Jaltest Marine software for Outboard Engines
- Jaltest Link V9 Interface (70001015)
- Jaltest USB Cable (JDC107.9)

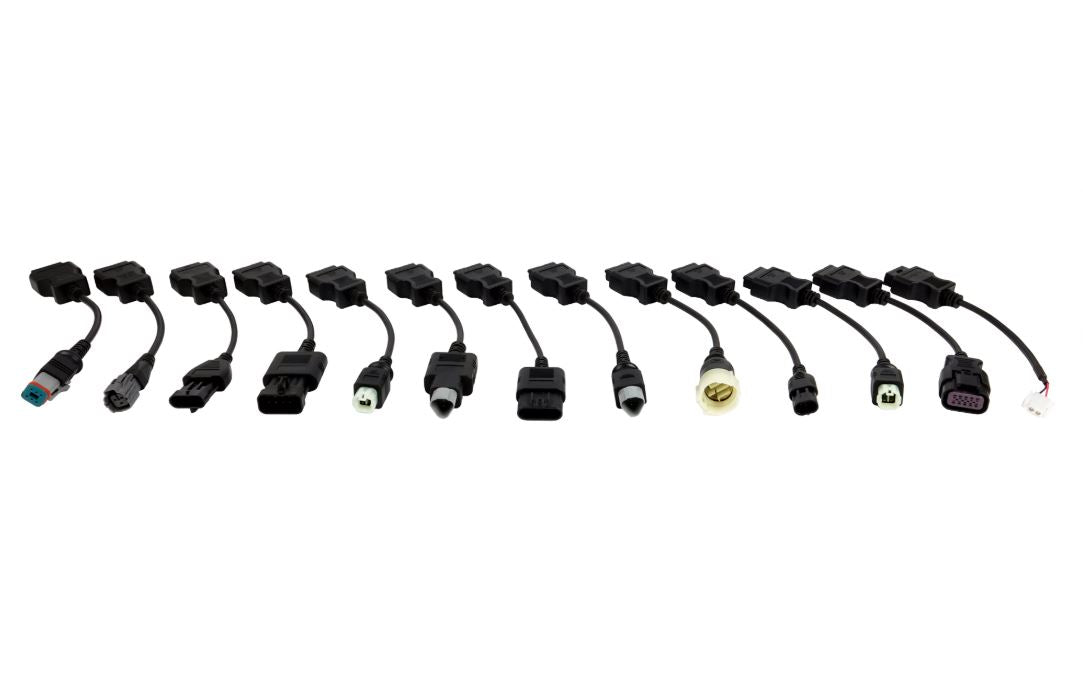

- Jaltest Universal Multipin Kit (70002007)
- Jaltest Battery Supply Cable (JDC10AM2)
- Jaltest Power Supply Cable (JDC100B)
- Jaltest V9 Interface Link OBD Adapter Cable (JDC213.9)
- Jaltest Yamaha Cable (JDC601A)
- Jaltest Mercury 2 Pin Cable (JDC614A)
- Jaltest Mercury 4 Pin Cable (JDC603A)
- Jaltest Mercury 10 Pin (MEFI 1-4) Cable (JDC604A) or JDC604.9
- Jaltest Honda Cable (JDC608A)
- Jaltest Evinrude Cable (JDC609A) or JDC609.9
- Jaltest Suzuki 4 Pin Cable (JDC616A)
- Jaltest Suzuki 8 Pin Cable (JDC613A)
- Jaltest MerCruiser Volvo Penta EGC1 6 Pin Cable (JDC611A)
- Jaltest Volvo Penta KAD KAMD TAMD Cable (JDC618A)
- Jaltest Volvo Penta 6 Pin Cable (JDC527A)
- Jaltest Yanmar 3 Pin Cable (JDC612A)
- Jaltest DTS Mercury / MerCruiser Cable (JDC611A)
- 12 Months of updates and support
- Please make sure you stay up-to-date with the software updates throughout the year. If you expire and you are not on the most current version, the software will stop working after 6 months for security reasons.
The contents of this kit include the cables needed for the most common inboard and outboard engines. However, there may be specific instances that require an additional cable. Use our Cable Finder tool or browse our cables to make sure you have the right cable for the job.
Coverage - Outboard:
- Evinrude
- Honda
- Johnson
- Mariner
- Mercury
- Mercury Racing
- Nissan
- Selva
- Seven Marine
- Suzuki
- Tohatsu
- Yamaha
Coverage - Inboard:
- Caterpilar
- Crusader
- Cummins
- Cummins MerCruiser Diesel
- Detroit Diesel
- FNM
- Hyuandai Seasall
- Ilmor
- Indmar
- Indmar Diesel
- Iveco/FPT
- John Deere
- Kodiak Marine
- Malibu
- Man
- Marine Power
- Mercury Diesel
- Mercury Mercruiser
- Mercury Racing
- MTU
- OBD-M
- OMC
- OMC Diesel
- Panther Airboats
- PCM
- Rotax
- Scania
- Scarab
- Sea-Doo (BRP)
- Steyr
- Toyota Marine
- VM Motori
- Volkswagen
- Volvo Penta
- Volvo Penta Gasoline
- Weber
- Yamaha
- Yanmar
